“Availability: Not Available in the U.S. and Canada
GPM Range: 250- 30000
101 – 1455 tons per cell
ASHRAE 90.1 compliant
Stainless steel structure option
Integral louvers help prevent water splash out and icing during winter operation Air Movement Package:
Removable fan guard of welded heavy gauge steel. Hot dip galvanized after fabrication.
Eased inlet fan cylinder ensures full area, low turbulent airflow through the cylinder.
High efficiency fan has wide-chord design for maximum efficiency at low fan tip speeds.
TEAO Fan Motor is specially insulated for cooling tower duty.
Water Distribution System
Gravity flow distribution system allows easy maintenance while the tower is in operation. Basin covers are standard.
Marley Spiral Target polypropylene nozzles resist clogging and require minimal maintenance.
Marley MX thermoformed PVC film fillis suspended from structural steel tubing. Integral eliminators and louvers keep circulating water confined to fill, even at low air rates.
Drift Eliminators can achieve drift rates as low as 0.0005% of the design flow rate.
Heavy-duty cast iron inlet and outlet flanges.
Sloping collection basinfor easier draining and cleaning.
Crossflow configuration provides easier and safer on-line maintenance. Interior walkway is standard.

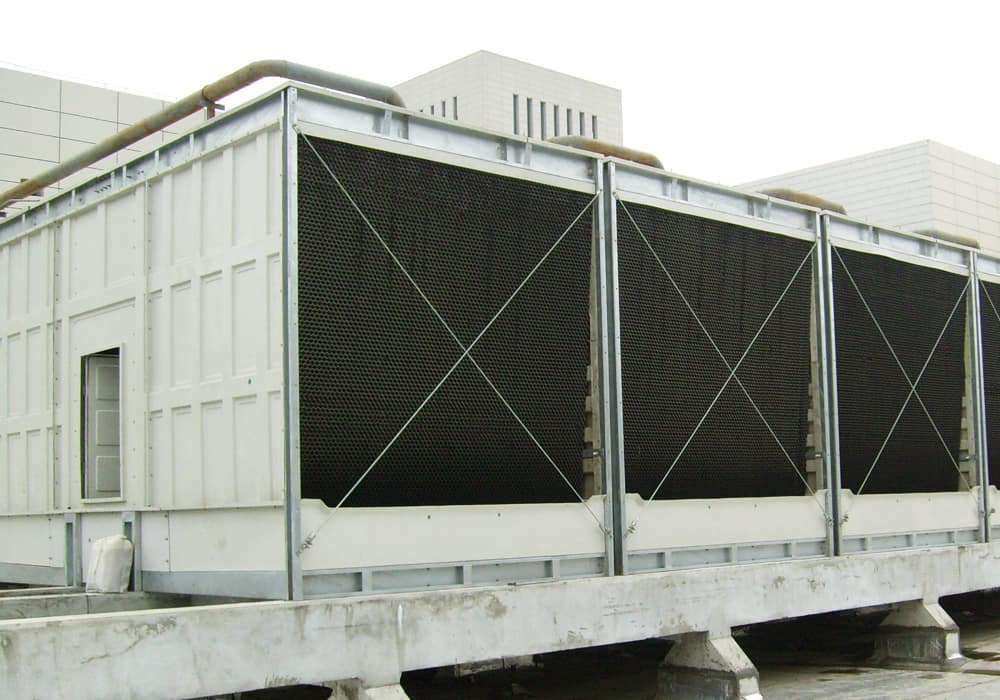

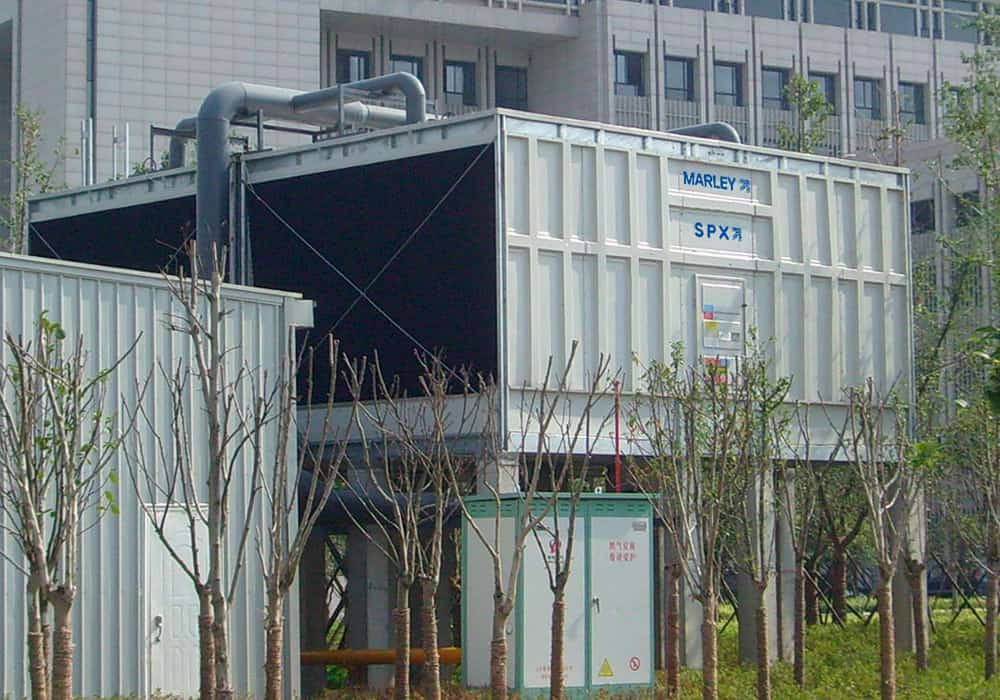

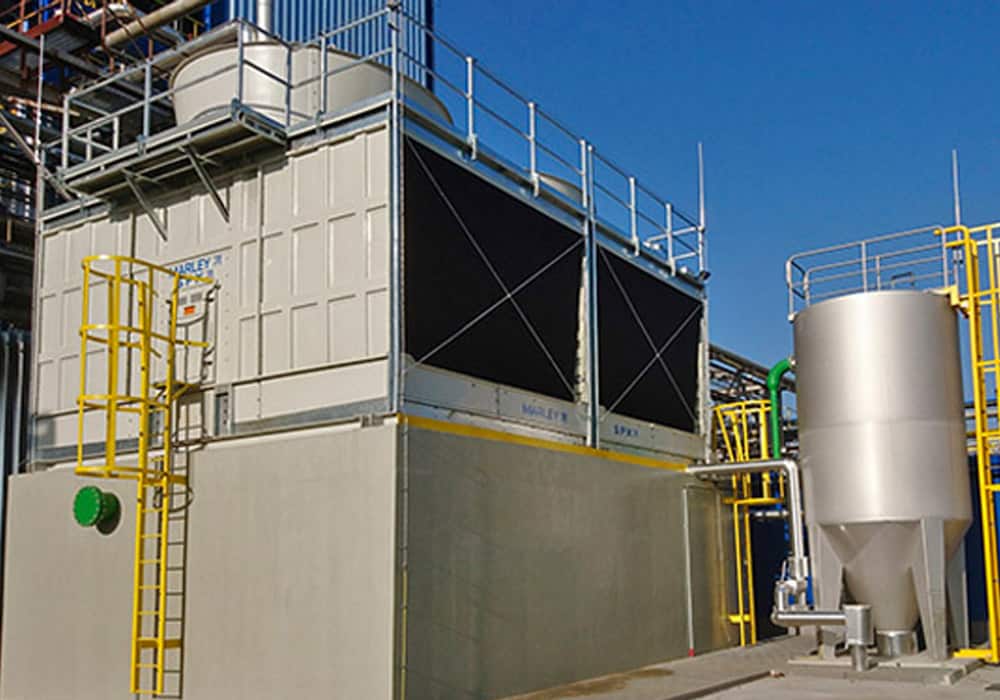

FRP constructionGalvanized and stainless steel substructure options available.
Field assembly simplifies transportation to job site.
Large access door allows quick visual inspection of cold water basin, internal structure, drift eliminators and mechanical equipment in the plenum area.”
